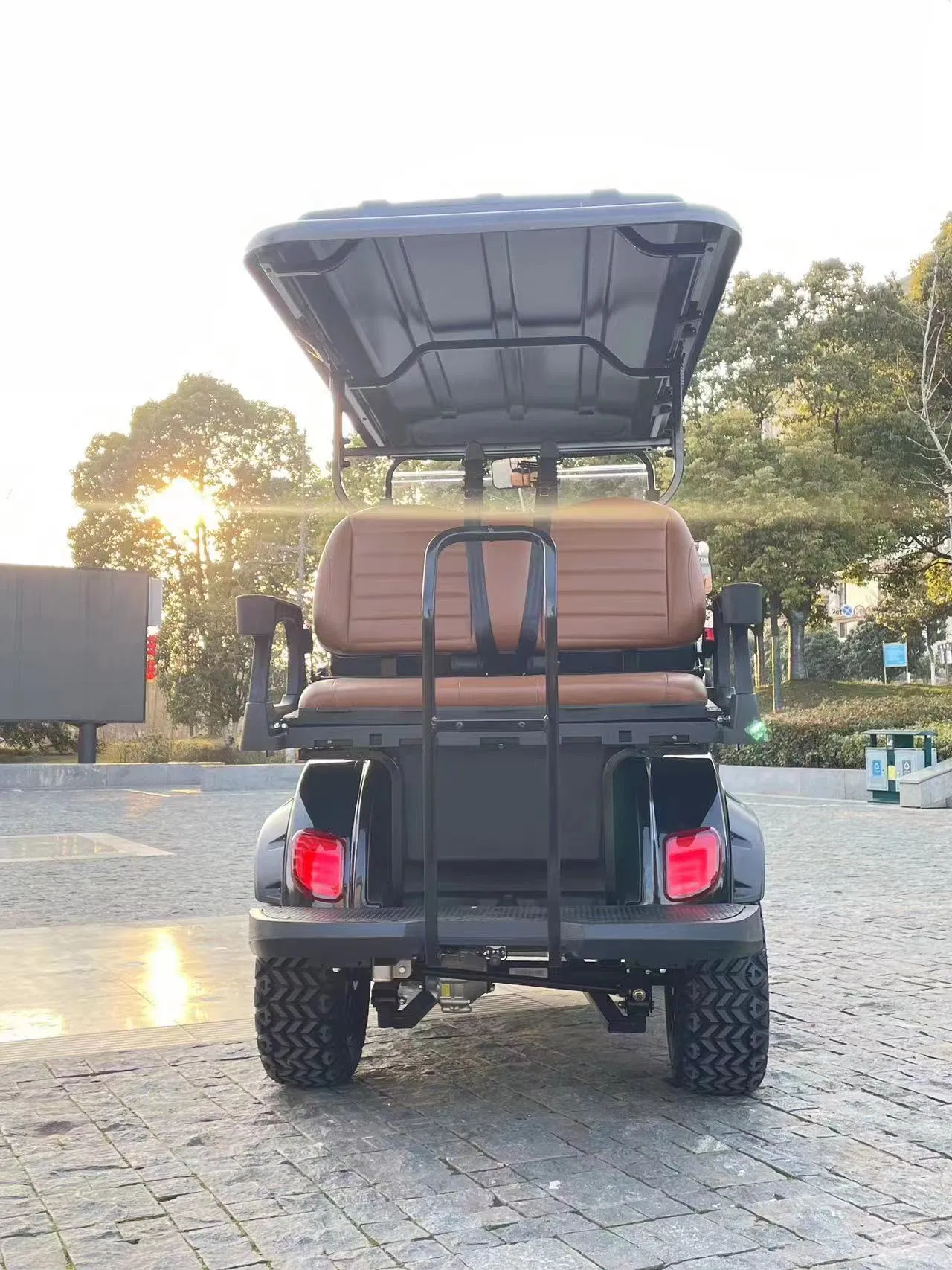

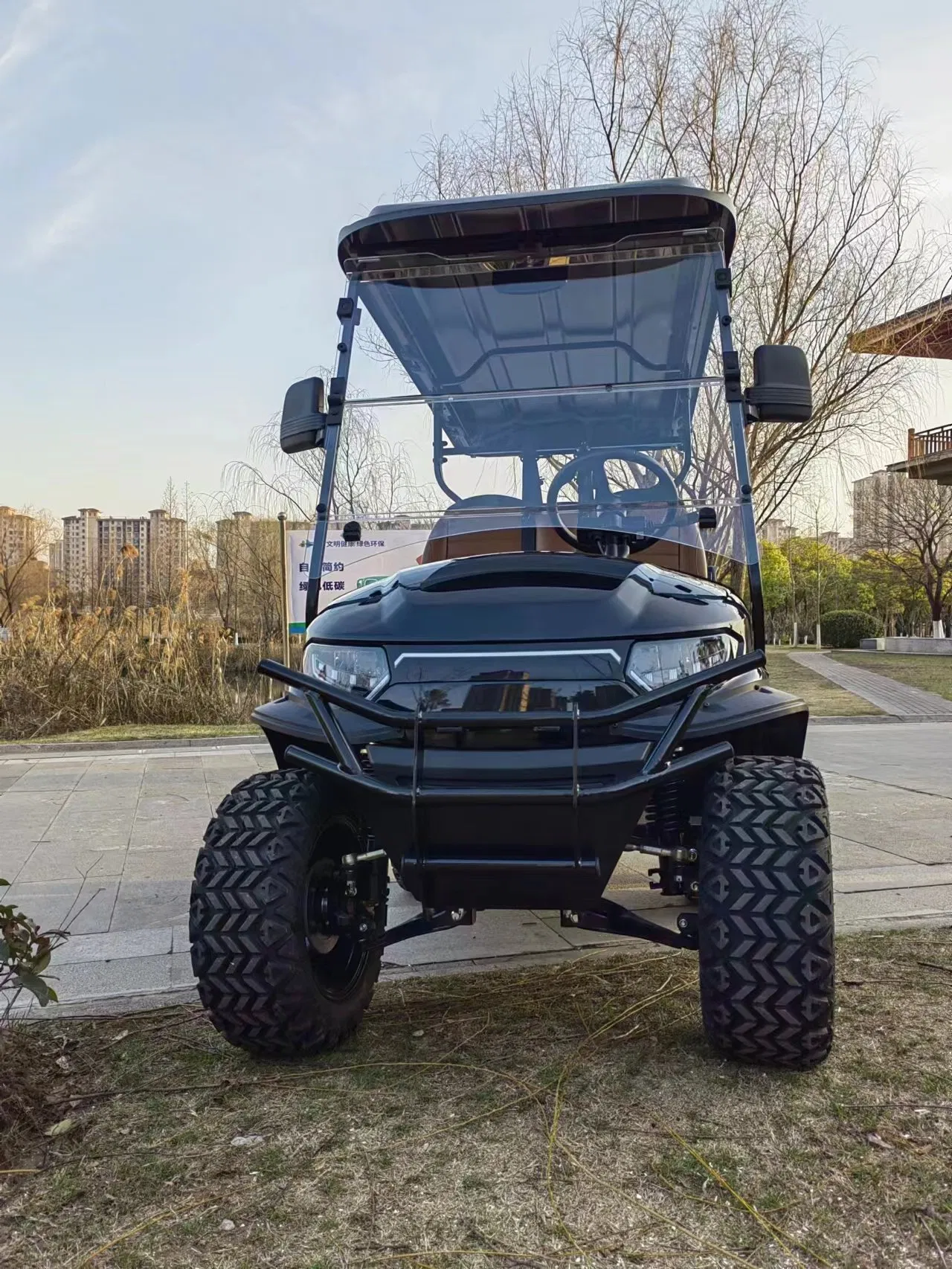

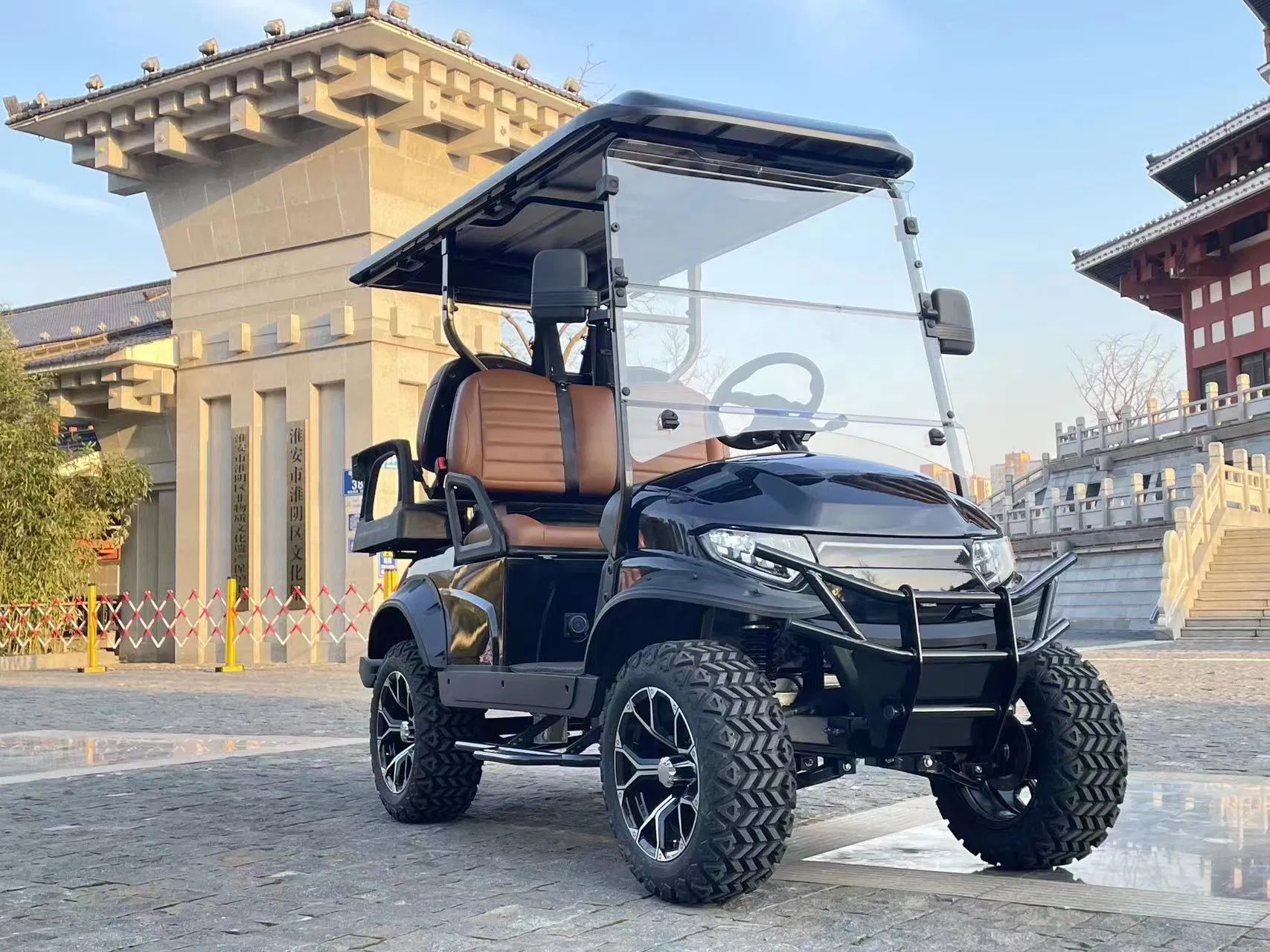

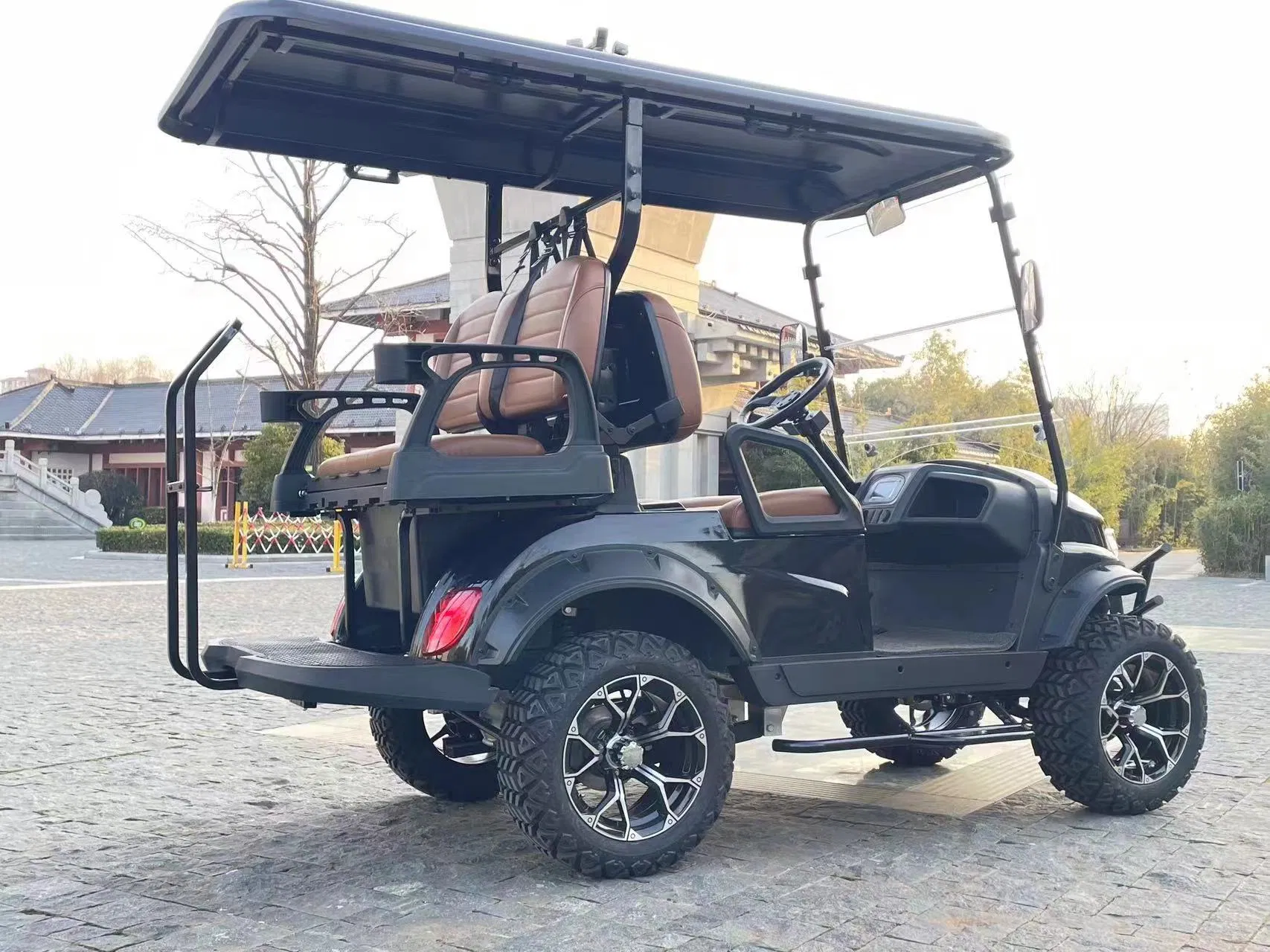

4 Seats Golf Cart with 48V Lithium Battery Hunting Cart
Product Description
i
Basic Specifications
Model NO.UF2+2
Power4kw
Power FuelElectric
Maximum Speed>30 km/h
Gradeability20-30%
Suitable forTourist Area
CertificationCE, ISO
Voltage of Battery48V
ColorCustomized
ChassisAluminium Alloy
BrakingElectric Braking and Magnetic Parking
Transport PackageNude
Specification3150L*1300W*2150H/mm
OriginChina
HS Code87031019
Production Capacity2000 units Per Year
★
Product Highlights
4 Seats Golf Cart with 48V Lithium Battery (2 plus 2 Hunting Cart)
- 2 years warranty
- High performance controller and powerful motor
- Eco-friendly PP injected body
- Lower maintenance cost
- High grade Aluminium alloy chassis for anti-rust
Chassis: Integral aluminium alloy chassis (one-time bending forming, not several parts welding together, with more than 10 years lifetime).
Body: High-strength and impact-resistant composite eco-friendly PP injected, customized body colors available.
Parking: High performance Electronic Parking system.
📋
Detailed Specifications
| Bodywork & Dimensions | |
| Frame | Aluminium alloy chassis super anti-rust (Guarantee 10 years) |
| Body Material | High-strength and impact resistant composite material |
| Overall Dimensions | 3150mm (L) x 1300mm (W) x 2150mm (H) |
| Wheel Base | 1700mm |
| Seating Capacity | 4 Persons |
| Carrying Capacity | 380kgs |
| Maximum Speed | 40km/h |
| Power System | |
| Motor | 4 KW AC Motor |
| Battery Options | Maintenance free battery 8V × 6pcs OR 48V Lithium battery |
| Charger | 48V 25A computer controlled charger |
| Driving System | Gear-driven, Stepless speed change, Electric rear drive |
| Climbing Ability | 30% |
| Steering & Suspension | |
| Steering System | Rack and pinion with automatic rocker compensating |
| Front Suspension | Macpherson independent suspension |
| Rear Suspension | Multileaf spring + cylinder hydraulic shock absorber |
| Brake System | Rear drum brake + Electric parking system |

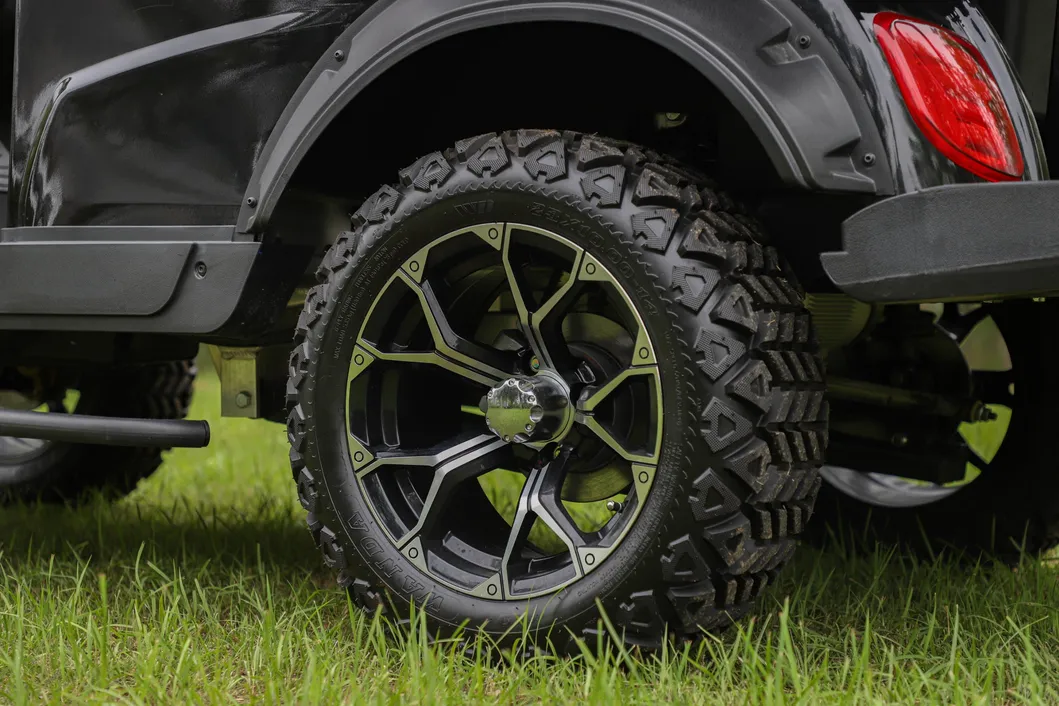

| Tyre & Wheel | 23×10-12, 4-layer superior tread with Aluminum hub |
📷

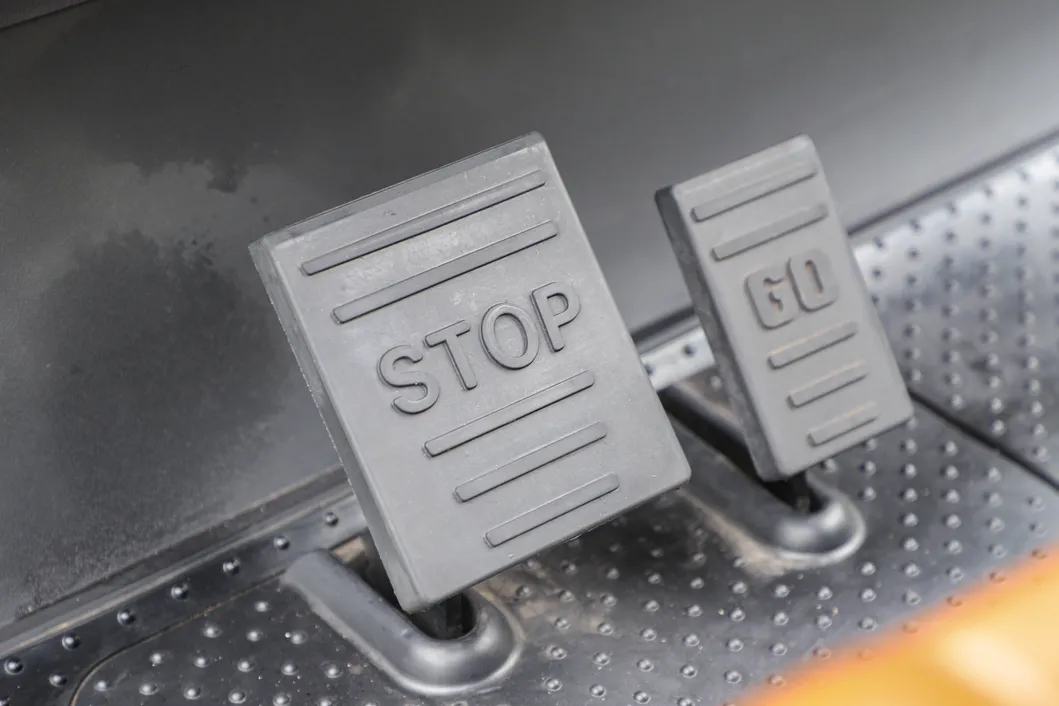

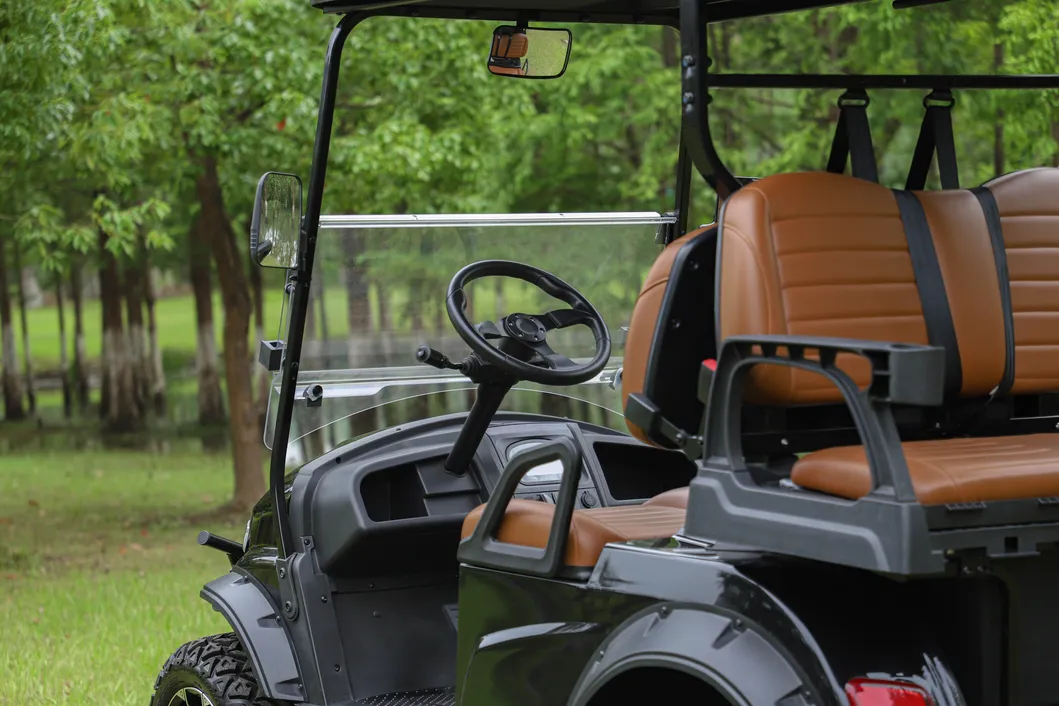

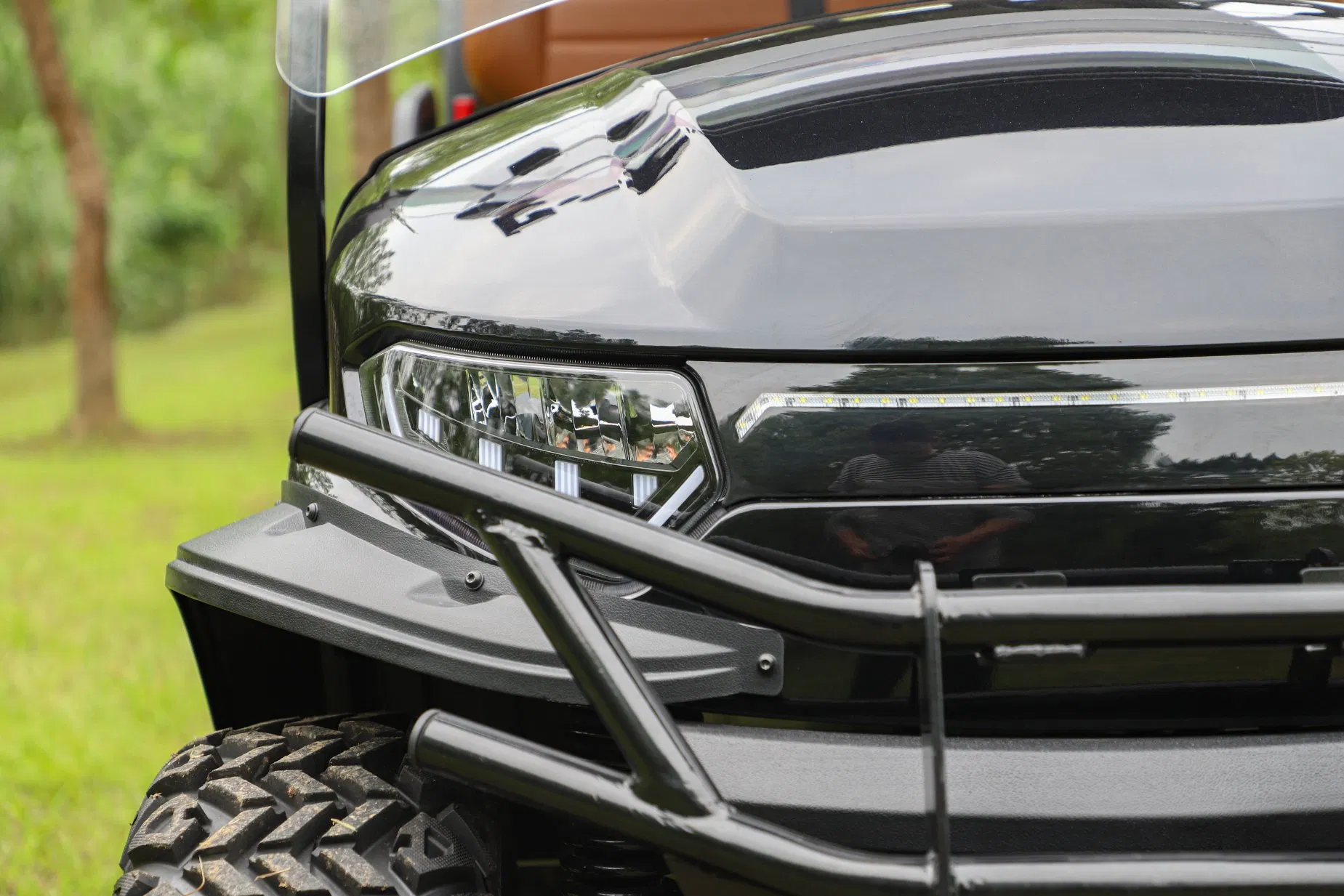

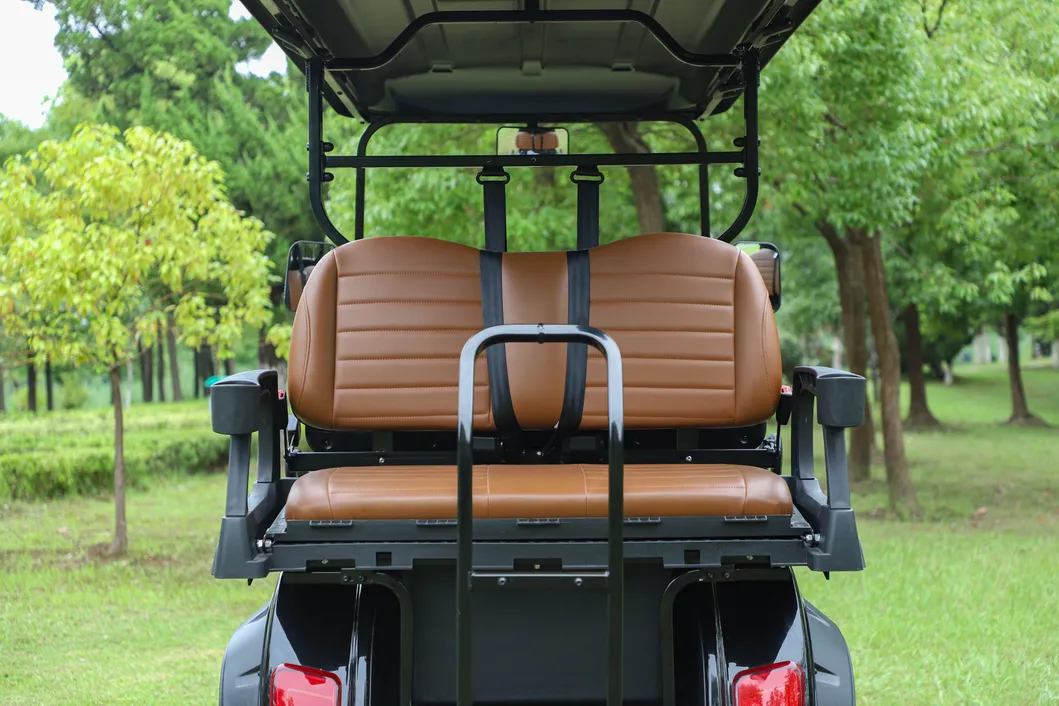

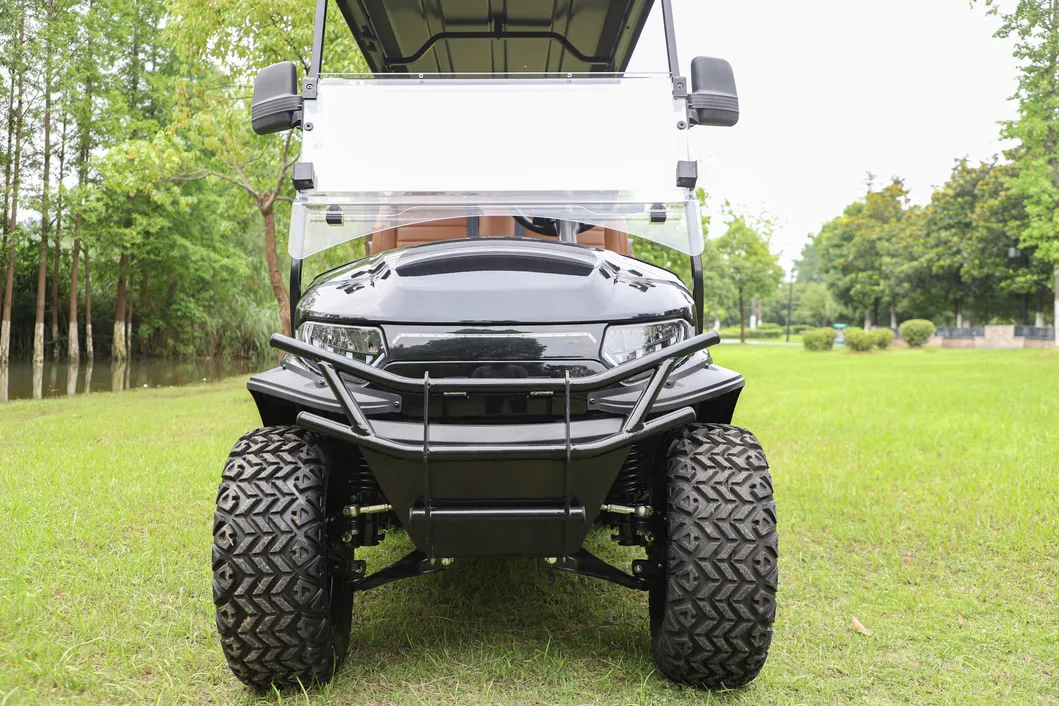

Details of the Hunting Cart
?
Frequently Asked Questions
What is the warranty period for this golf cart?
The cart comes with a 2-year warranty covering the high-performance controller and motor components.
How long does the aluminium alloy chassis last?
The integral aluminium alloy chassis is designed for extreme anti-rust performance, with a guaranteed normal use lifetime of more than 10 years.
Can I choose a different battery type?
Yes, we offer two configurations: a maintenance-free 8V × 6pcs battery setup or a modern 48V Lithium battery system.
What is the seating capacity and payload?
The cart features a 2+2 seating arrangement (4 seats total) with a carrying capacity of approximately 380kgs.
What is the maximum speed and climbing ability?
This model reaches a maximum speed of 40km/h and can handle a maximum climbing gradeability of 30%.
Are the colors customizable?
Yes, while standard colors include white, green, and red, the eco-friendly PP injected body color can be customized to your requirements.
