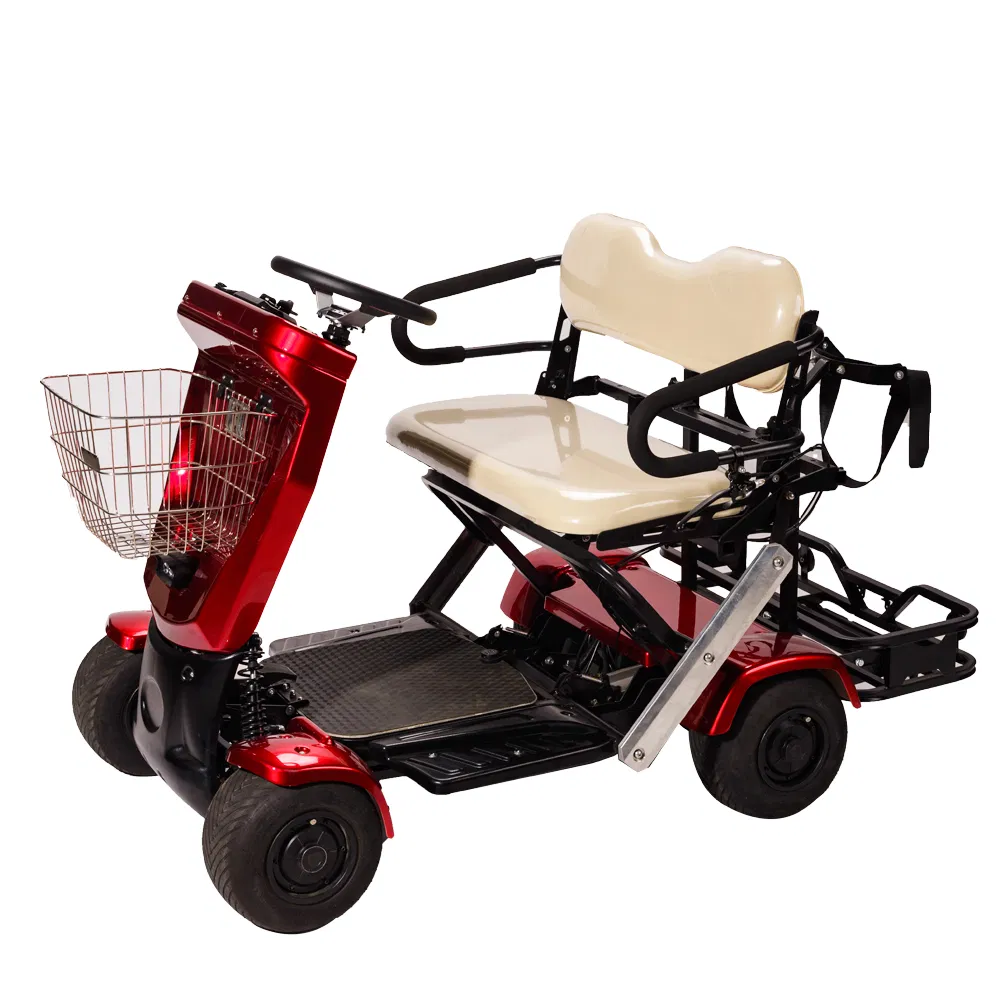

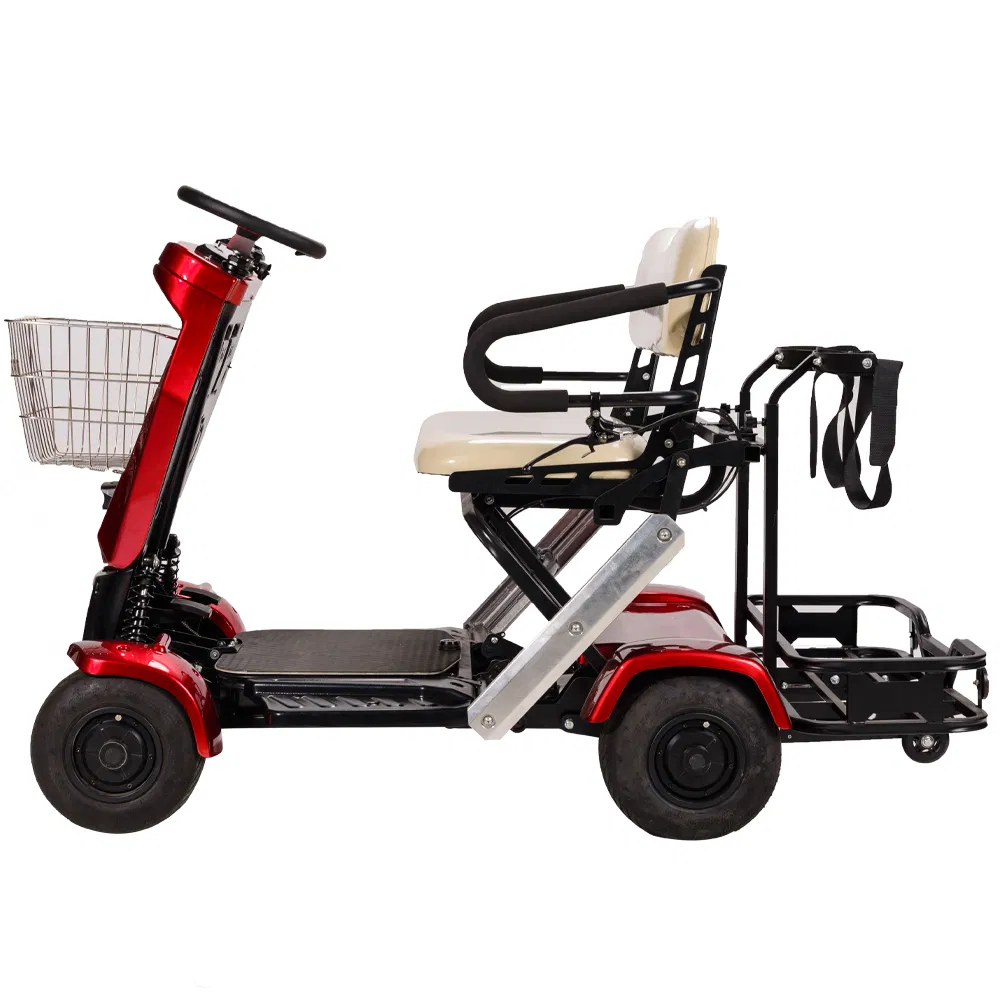

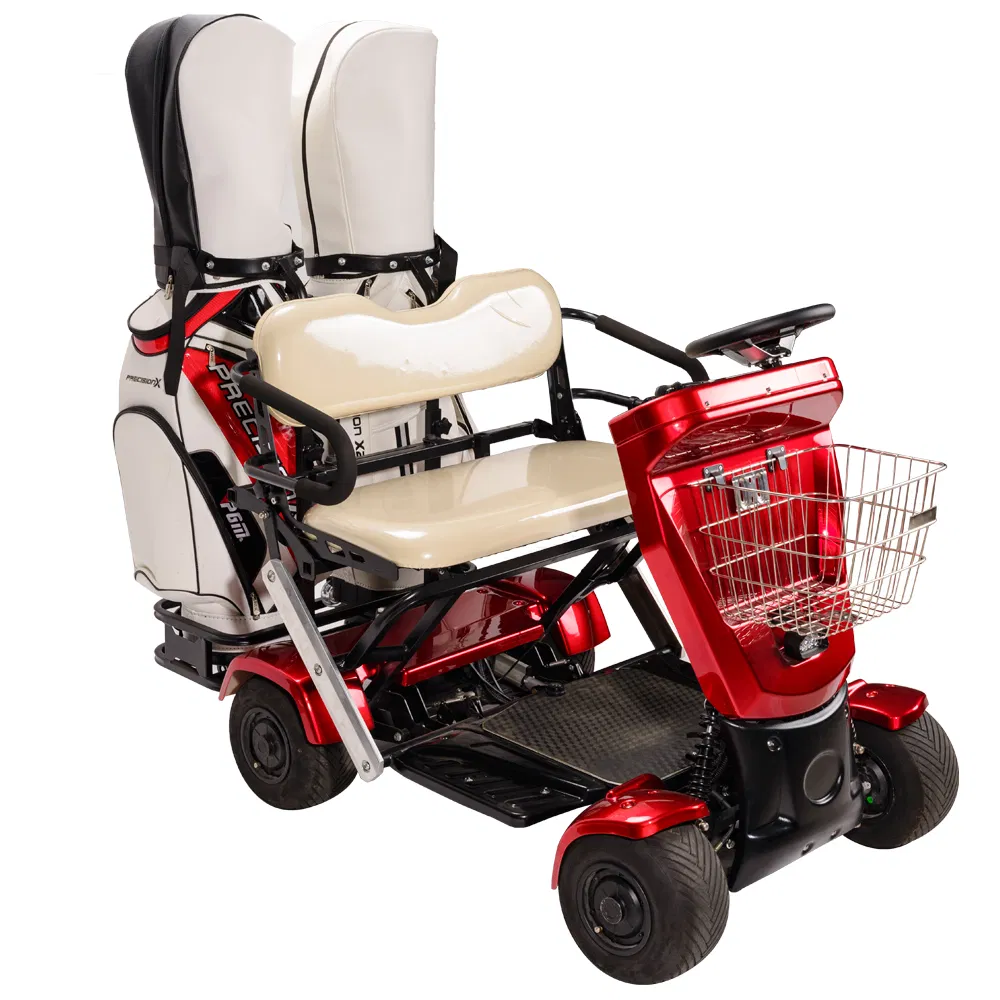

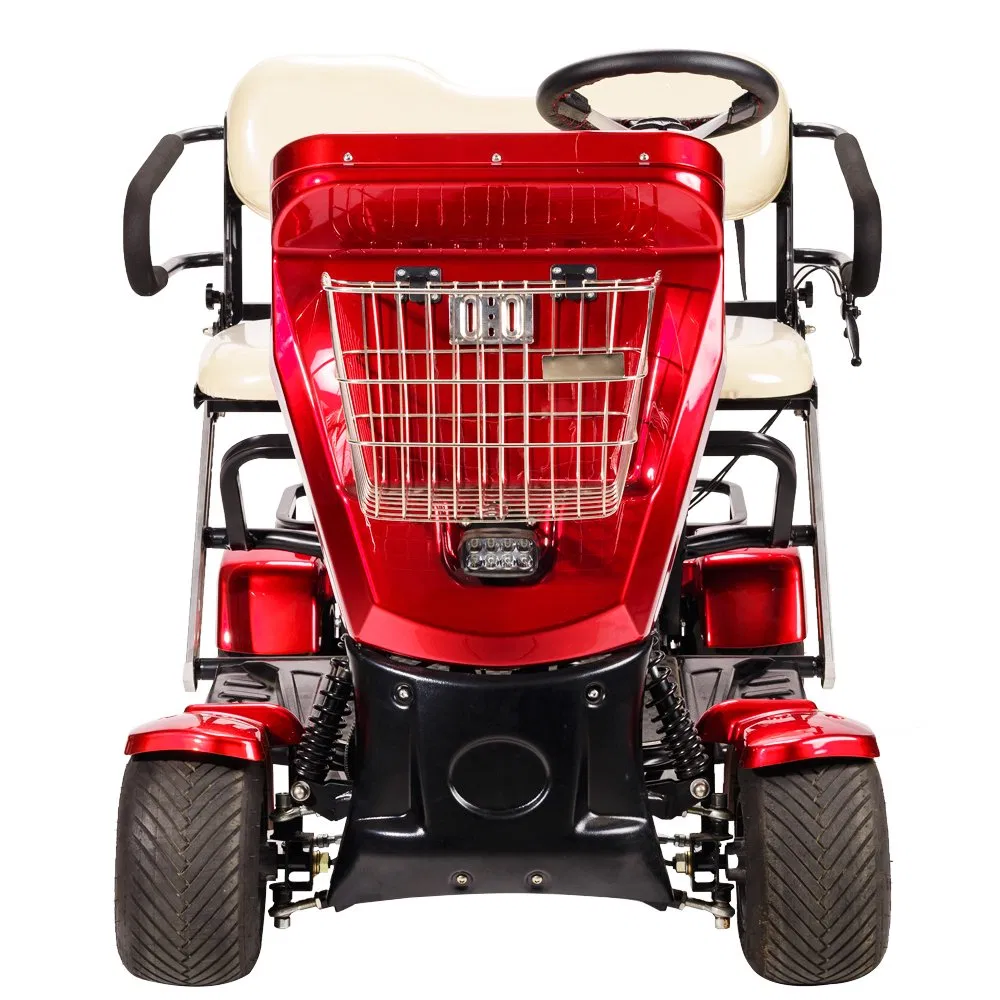

Newest Four Wheels Electric Folding Golf Cart
Product Description
Basic Specifications
Model NO.
golf cart
Power
500wx4
Power Fuel
Electric
Maximum Speed
20-30 km/h
Gradeability
20-30%
Suitable for
Golf Course
Certification
CE
Voltage of Battery
60V
Color
White
Folded Dimension
540*850*1030 mm
Production Capacity
5000 / Month
HS Code
8703101900
Product Features
Model EML48A (G) is a premium folding electric golf cart designed for ultimate portability and performance. Its foldable structure makes it easy to carry and store, catering perfectly to the needs of modern golfers.
1
Smart Interface: User-friendly operating panel for intuitive control.
2
Dual Storage: Spacious design allows for two golf tool bags.
3
Smooth Ride: Four independent suspensions ensure a comfortable driving experience.
4
Compact Storage: Fully foldable design to occupy minimal space.
5
Quad-Motor Power: Equipped with four motors for strong climbing on hilly slopes.
6
Puncture Proof: High-quality vacuum wheels to avoid any delays from tire punctures.
Technical Parameters
| Dimensions | |
|---|---|
| Overall Dimension | 1580x850x1070mm |
| Folded Dimension | 540x850x1030mm |
| Wheel Track / Wheelbase | 658mm / 988mm |
| Ground Clearance | 110 mm |
| Main Components | |
| Lithium Battery | 60V 20AH (Initial password: 000) |
| Motor Type | Brushless, Quad-Motor (4x500W) |
| Charger | 60V 3A (Input 110V~240V) |
| Tires | Vacuum Tire 10X6-5.5 |
| Brake System | Hydraulic Disc Brake |
| Performance | |
| Loading Capacity | 175 kgs |
| Max Parking Slope | 25% |
| Climbing Capacity | 45% |
| Range Per Charge | 30 to 45 km |
| Max Speed | 29 km/h |
Product Detail View

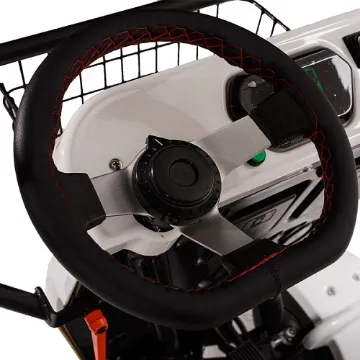

1) Easy Operating Steel Structure

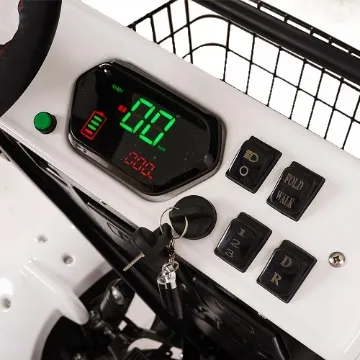

2) User Friendly Operating Panel

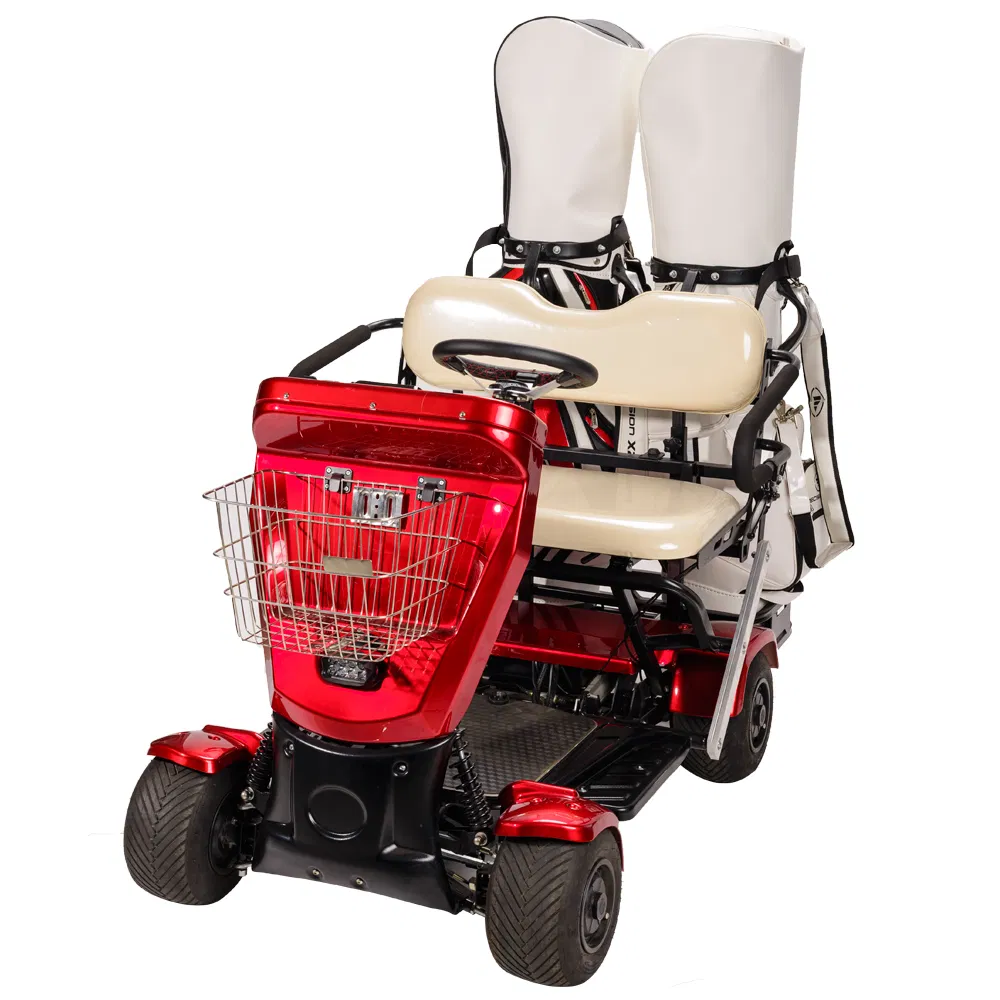

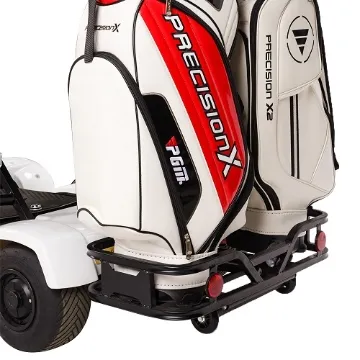

3) Dual Bag Holder System

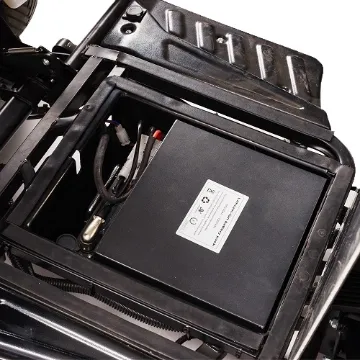

4) Secure Battery Case

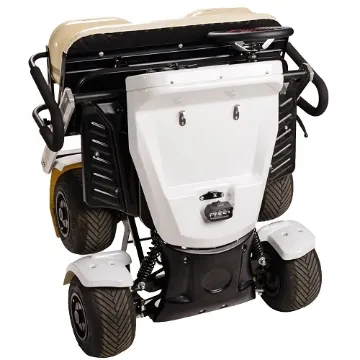

5) Compact Folded State

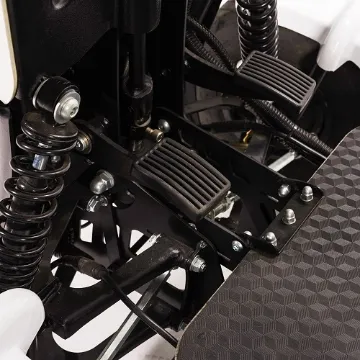

6) Acceleration & Reverse Pedals
Action & Field Display
Frequently Asked Questions
How far can this golf cart travel on a single charge?
The cart provides a range of approximately 30 to 45 km per charge, depending on the terrain and load.
What is the climbing capacity of this model?
Thanks to its powerful quad-motor system (4x500W), it has a climbing capacity of up to 45% and a max parking slope of 25%.
Is the golf cart easy to transport in a standard car?
Yes, the cart is specifically designed to be foldable. Its folded dimensions are 540x850x1030mm, making it easy to store and transport.
What type of maintenance do the tires require?
The cart uses 10X6-5.5 vacuum tires, which are designed to be puncture-resistant, significantly reducing maintenance needs compared to traditional tubes.
Can the battery be used in different countries?
The included 60V 3A charger is suitable for input voltages ranging from 110V to 240V, making it compatible with power standards worldwide.
What is the maximum load capacity?
This electric golf cart can safely carry a maximum loading capacity of 175 kgs.
